Mezzo 604 AD

136.408 €

600W/4-channel Compact Amplifier with DSP and Dante™

*cena bez PDV-a

Категорија:

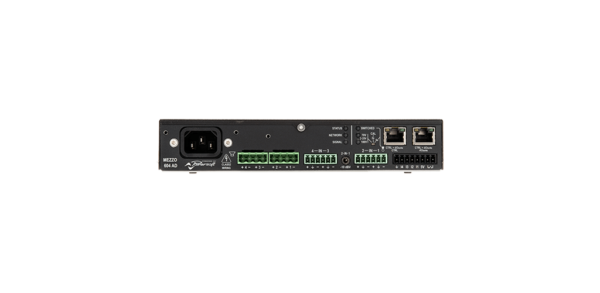

Mezzo 604 AD heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, „AD“ versions of Mezzo offer all the remote control and monitoring functions of the „A“ versions, further extending networking capabilities with Dante and AES67. The small form factor allows it to be mounted anywhere thanks to the included mounting kit.

MyPowersoft services are available for this product.

Features:

  • Multiple mounting options
  • Auto-Setup
  • Power-sharing
  • Full remote control via 3rd party controls



Specifications:

GENERAL
Output power
Single channel mode 150 W @ 2 Ω 150 W @ 4 Ω 150 W @ 8 Ω
Maximum power-sharing capacity per channel 400 W @ 4 Ω 600 W @ 8 Ω
Max output voltage / current
Maximum unclipped output voltage 142 Vpeak
Maximum output current 15.6 Apeak
AC MAIN POWER
Power supply Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 90 V – 264 V
Power consumption/current draw
Idle 115 V: 16 W – 0.275 A 230 V: 17 W – 0.21 A
1/8 of max output power @ 4 Ω 115 V: 130 W – 1.17 A 230 V: 129 W – 0.67 A
THERMAL
Thermal dissipation*
Idle 115 V: 53 BTU/h 230 V: 59 BTU/h
1/8 of max output power @ 4 Ω 115 V: 126 BTU/h 230 V: 139 BTU/h
